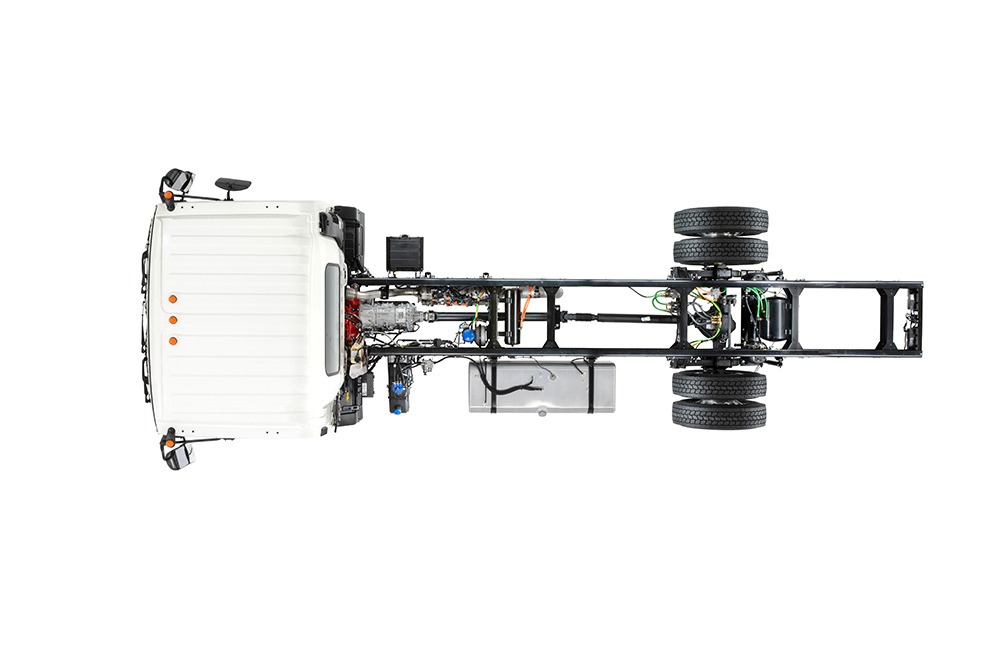

2023 ISUZU FVR CAB & CHASSIS

Air Conditioning - 5 Years Or 50,000 Vehicle Miles

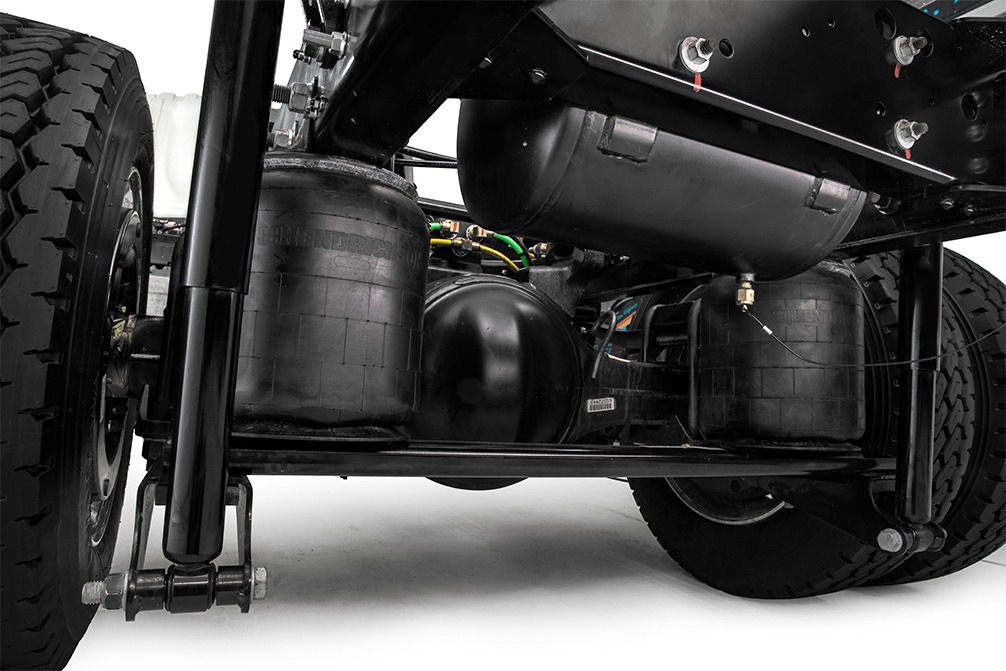

Air Suspension
Allison® Rds Transmission
Basic - 3 Years Or Unlimited Vehicle Miles
Corrosion (Rust Through) - 4 Years Or Unlimited Vehicle Miles
Cummins B6.7L Engine
Drive Axle, Driveshaft, Front Axle I-Beam, Crossmembers, Flywheel Housing - 3 Years Or Unlimited Vehicle Miles
Emission Control System - 5 Years Or 100,000 Vehicle Miles
Engine* - 3 Years Or Unlimited Vehicle Miles
Enhanced Interior
Exhaust
Frame Rails - 3 Years Or Unlimited Vehicle Miles
Frame Rails - 5 Years Or Unlimited Vehicle Miles
Ftr: Allison 2550 Rds (Includes Park Pawl)
Fuel Tanks
Fvr (De-Rate): Allison 2500 Rds (No Park Pawl)
Fvr: Allison 2500 Rds (No Park Pawl)

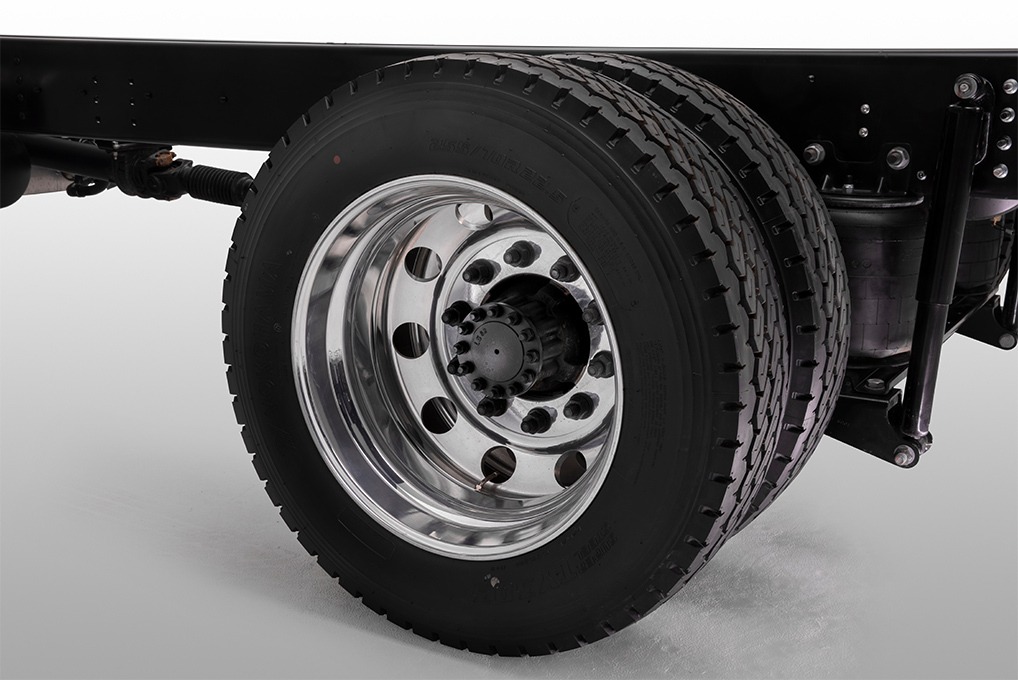

Isuzu F-Series Trucks Are Equipped With Standard 11R22.5 Tires On Steel Wheels. Customers Can Opt For Aluminum Wheels And, On The Class 6 Ftr, Have The Option For Low-Pro Tires That Lower The Chassis For Special Applications Like Rollback Bodies.
Isuzu Is The #1 Selling Low Cab Forward Truck Since 1986. Much Of That Success Is Due To A Superb Low Cab Forward Chassis Design That Provide Drivers And Owners Alike Benefits That They Value.
Larger Ca (Cab-To-Axle): Isuzu Trucks Have A Larger Ca Than Our Conventional Cab Competitors. This Allows For Larger Bodies To Accommodate More Cargo On Similar Wheelbase Lengths.
Led Headlamps And Daytime Running Lights Provide Enhanced Illumination For Safer Driving And Last Longer Than Halogen Bulbs For Better Value.
Led Lights
Maneuverability: Isuzu Trucks Are Class-Leading In Maneuverability. Their Inner Wheel Cuts Allow For Sharper Turning And Reduces Three-Point Turns Which Saves Driving Time And Makes For Safer Driving.
Overall Lcf Benefits
The Allison Rugged Duty Series Transmission Was Built For The Medium-Duty Market. It’S Proven Durability And Reliability Provide Greater Uptime With A Lower Cost Of Operation.
The B6.7L Is A 6-Cylinder Diesel Engine That Outputs 260-Hp And 660 lb-Ft. Of Torque. It Is The Highest Horsepower And Torque Offering From The Cummins B6.7L. This Power And Torque Combination Will Easily Move Heavier Payloads Through Urban Environments And On The Highway.
The B6.7L Is The Most Popular Engine Ever Built By Cummins And Rightfully So, It’S Been Tested And Proven With More Than 13 Million Engines Produced Over Nearly 40-Years With Billions Of Miles Driven.
Engine Drivetrain
Engine Cummins B6.7L Diesel Engine 260 HP @ 2400 RPM 660 LB-FT @ 1600 RPM
Measurements
Body Application Up to 30 ft.
Operational
Truck & Trailer Weight 33,000 lbs GCWR
Fuel Tank 50 Or 100-Gallon
Transmission 6-Speed Automatic Allison® 2500 RDS
Tires 11R22.5 (14-PR)
Brakes Full Air Dual Circuit Brakes With ABS And S-CAM Drumfront & Rear Drum 16.5-IN.
GVWR/GCWR 33,000/33,000 LBS
Class 7
